TALARIA STING ROAD LEGAL L1E (60V-38.4Ah)

Model Year

2024

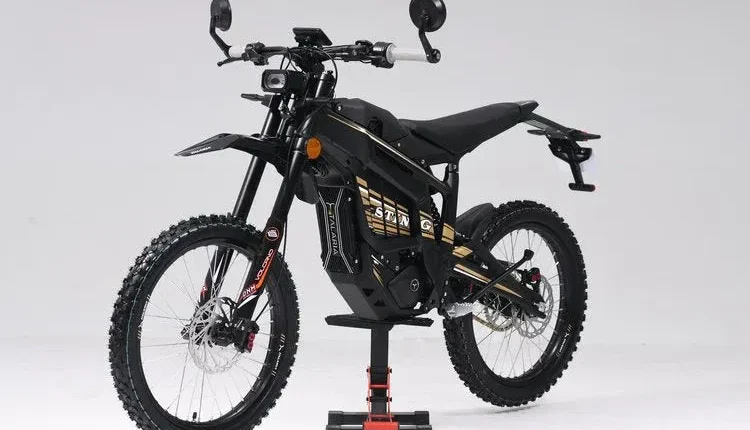

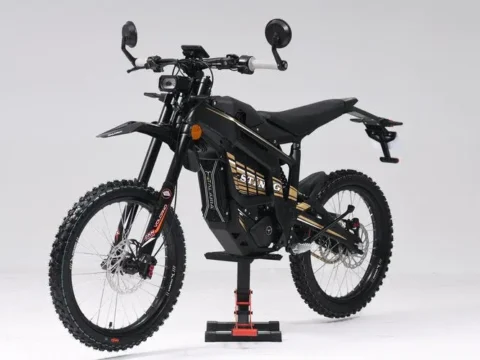

Talaria Sting Road Legal L1E (60V-38.4Ah): Street-Legal Electric Dirt Bike

The Talaria Sting Road Legal L1E (60V-38.4Ah), released in 2024, is the ultimate electric dirt bike for riders craving both off-road excitement and street-legal convenience. Homologated to the L1E category (equivalent to a 50cc moped), this bike is designed for riders over 16 with an AM or P license and a valid CBT, or those with a pre-2001 car license or full motorcycle license. Powered by a high-capacity 60V 38.4Ah lithium-ion battery, the Sting L1E offers impressive range, torque, and agility, making it ideal for urban commuting and trail adventures.

Release Date

Launch Date: 2024
Availability: Widely available since its 2024 release, with select markets offering pre-orders for specific variants

Key Features and Specifications

Powerful Performance

Motor Type: Talaria Permanent Magnet Synchronous, mid-frame mounted
Rated Power: 3 kW (4 hp)
Peak Power: 6 kW (8 hp)
Max Torque: 34 Nm (motor), 284 Nm (rear wheel with 44T sprocket)
Top Speed: Restricted to 30 mph (48 km/h) for L1E homologation
Range: Up to 43 miles (70 km) at 25 mph (40 km/h)
Battery: LG 21700 lithium-ion, 60V 38.4Ah (2,280 Wh), swappable in seconds
Charging Time: 3.5 hours for a full charge

The Sting L1E’s high-efficiency motor and state-of-the-art Battery Management System (BMS) deliver instant torque and smooth power delivery, ensuring a thrilling yet controlled ride.

Street-Legal Design

Homologation: L1E category, equivalent to a 50cc moped

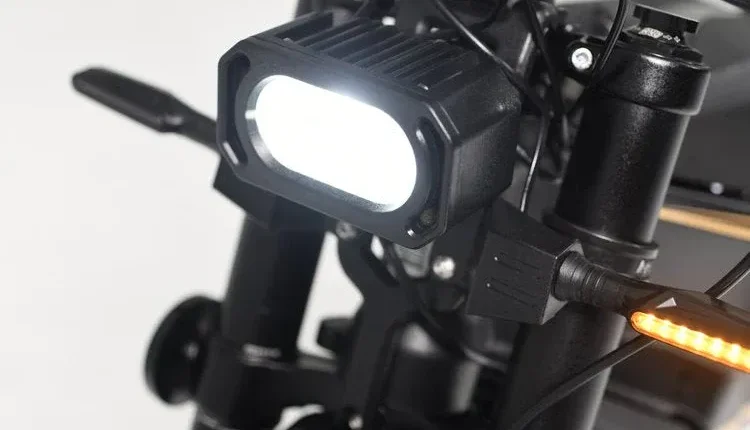

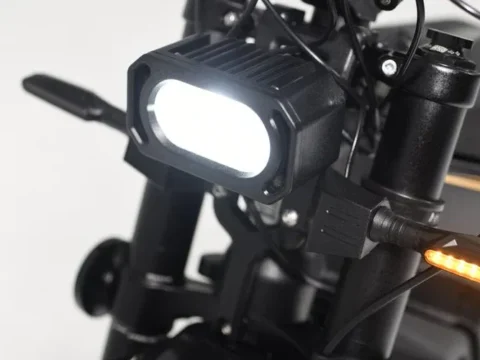

Lighting: Road-legal LED headlight, reactive brake lights, and turn signals
Mirrors: Included for compliance with road regulations

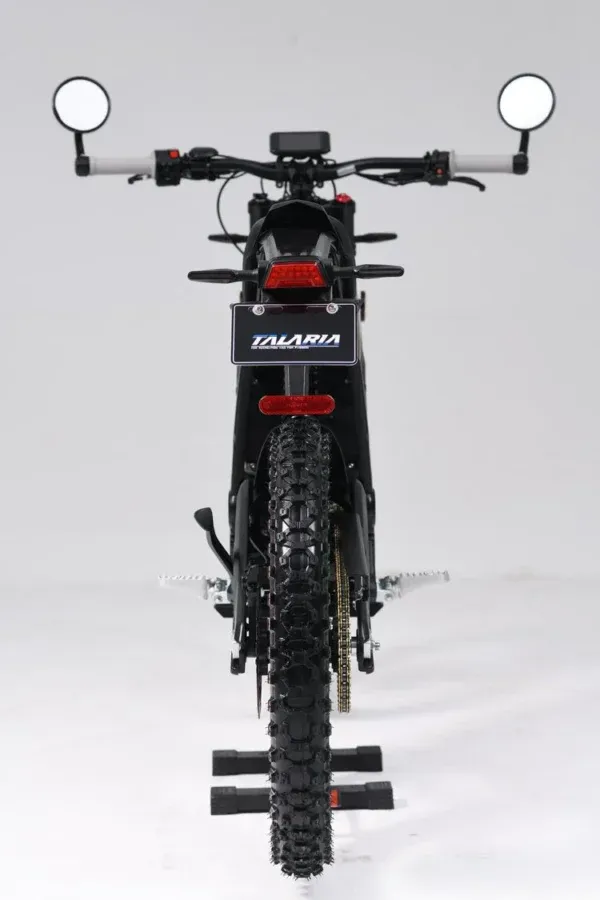

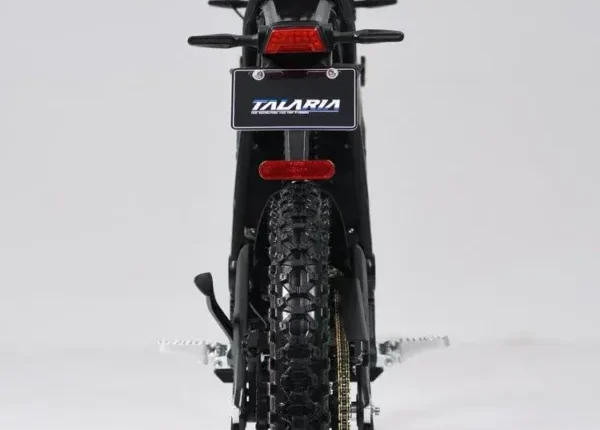

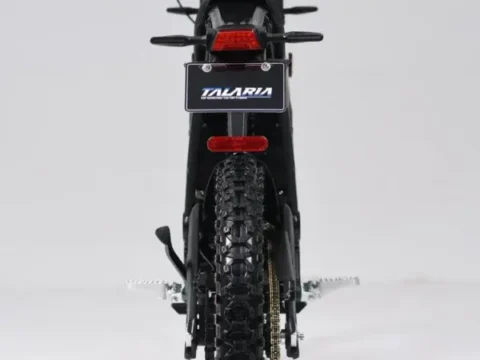

License Plate Holder: Tail Tidy style for a sleek look

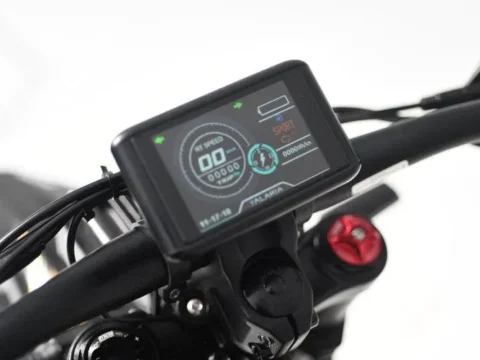

Display: Larger OLED multi-function screen with speed, battery level, odometer, and error codes

These features make the Talaria Sting L1E fully compliant for road use while maintaining its off-road DNA.

Robust Build for Versatility

Frame: 6061 T4 & T6 aluminum alloy, forged under 6,000 tons of pressure
Weight: 128 lbs (58 kg, including battery)
Battery Weight: 28.3 lbs (12.85 kg)
Seat Height: 33.1 inches (840 mm)
Ground Clearance: 11.8 inches (300 mm)
Wheelbase: 49.2 inches (1,250 mm)
Dimensions: 74 x 30.3 x 42.8 inches (1,880 x 770 x 1,088 mm)
Max Load: 220 lbs (100 kg)

The lightweight, anodized frame ensures agility and durability, perfect for navigating both city streets and rugged trails.

Advanced Suspension and Braking

Front Suspension: FastAce or Talaria Factory customized fork
Rear Suspension: FastAce or Talaria HT shock
Brakes: 4-piston hydraulic disc brakes (front and rear)
Wheels: 19-inch spoked aluminum
Tires: 70/100-19 (front), 80/100-19 (rear)

The suspension system absorbs shocks for a smooth ride, while the hydraulic brakes provide reliable stopping power in all conditions.

Cutting-Edge Technology

Controller: FOC type, 92% efficiency, with transient current resistance and temperature protection
Display: High-contrast OLED with CAN communication for real-time data
Regenerative Braking: 4-level adjustable for enhanced efficiency
Waterproof Rating: IP67 for battery and motor, ensuring durability in wet conditions

The Sting L1E’s smart electronics deliver precise control and real-time feedback, enhancing the riding experience.

Additional Highlights

Transmission: Gearbox (primary) and chain (secondary, 44T sprocket) for quiet, durable power transfer
Colors: Available in Black, Red, and other select options
Warranty: 1-year limited warranty
Maintenance: Low-maintenance design with no clutch or gears

Why Choose the Talaria Sting Road Legal L1E?

The Talaria Sting L1E stands out for its dual-purpose versatility, combining off-road capability with street-legal functionality. Its swappable 60V 38.4Ah battery offers a limitless range with quick swaps, while the lightweight frame and advanced suspension ensure agile handling. Compared to competitors like the Sur-Ron Light Bee, the Sting L1E offers superior torque, a quieter gearbox, and road-ready features like headlights and indicators. Whether you’re commuting through the city or exploring trails, this bike delivers eco-friendly performance without sacrificing thrill.

Ride the Future with Talaria Sting L1E

The Talaria Sting Road Legal L1E (60V-38.4Ah) is your ticket to seamless urban rides and off-road adventures. Available since its 2024 release, this electric dirt bike combines power, style, and compliance for riders of all levels. Don’t miss out—join the electric revolution and experience the Sting L1E’s unmatched performance today!

Technical Specifications

Fuel:

Electric

Condition:

New

TALARIA STING ROAD LEGAL L1E (60V-38.4Ah)
